Reactors & Mixing Vessels

We are Manufacturer, Supplier and Exporter of Mixing and Reactor Vessels. This product is also called Reactor Vessels, Stainless Steel Reactor Vessels and our setup is situated in Aurangabad, Maharashtra, India. Umasons has the capability to fabricate a vast variety of processing vessels for your mixing, blending and Intermidiate storage needs. All vessels and tanks are customized as per the specifications required by our customers. We manufacture vessels and tanks mainly in Stainless Steel SS 304 and SS 316.

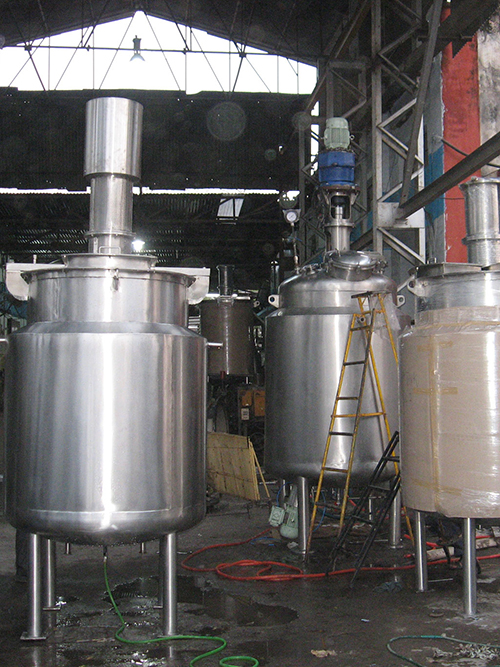

Intermediate Vessels/ Process Vessels
Umasons can manufacture complex processing and intermediate vessels for the process and chemical industry.
We have experience in handling highly volatile, corrosive Umasons also has knowledge of the combinations of fittings, appendages, heat transfer and mixing equipment We provide jacketed / limpet coiled and insulated tanks in SS 316 and SS 304. Special nozzles, manholes, level indicators, viewing ports, temperature probes and another additional appendages can be built in-to your intermediate & process vessels.

Intermediate Vessels / Process Vessels

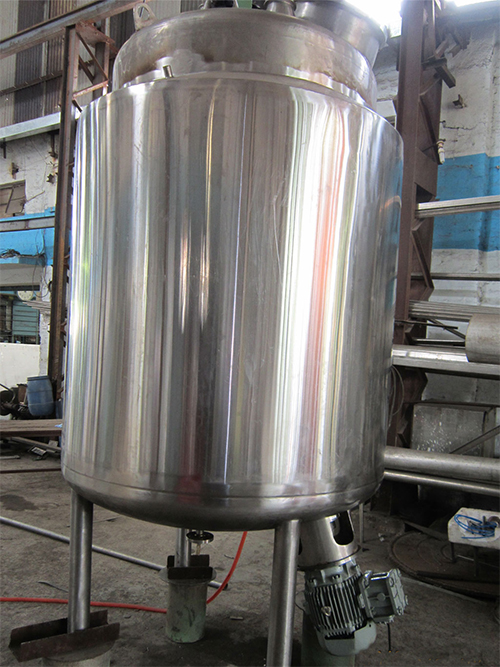

reactors-and-mixing-vessels-3000-liters

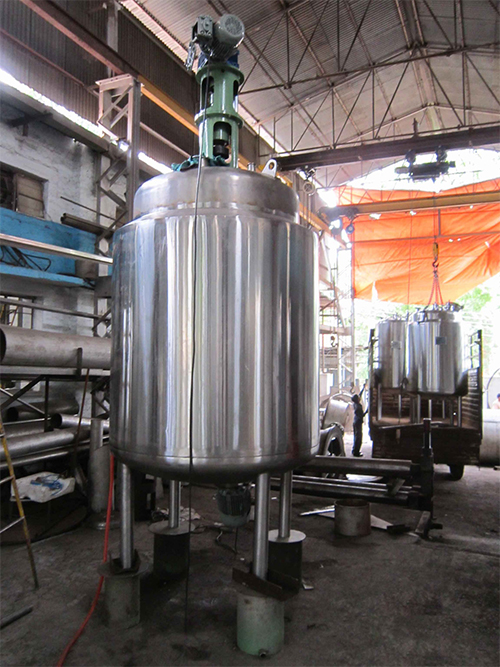

3000-liters-jacketed-reactors



STANDARD DESIGNS OF REACTOR / MIXING VESSELS

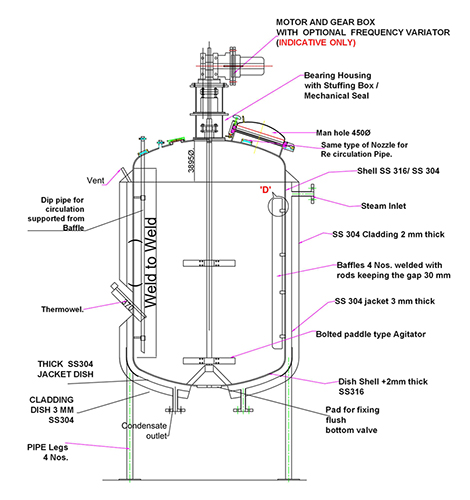

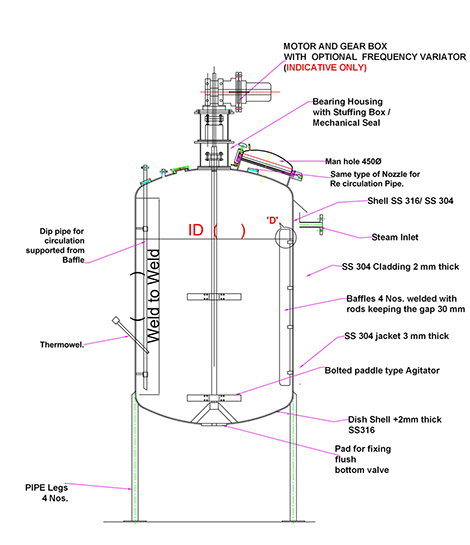

JACKETED BOTH SIDE DISHED END REACTOR :
Top and Bottom- Dish end
Jacketed - Fr Shell and Bottom dish
Insulated with Cladding
Agitator - Turbine type / Propeller Type Anchor Type, with Bottom Tripod
With or with out Mechanicalanical seal
With Leg / lug support
1 No Man hole / Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
Thermo well
Inlet, Drain for Bottom
Jacket dish, Out let and vent at top of dish.
Designed for Internal Pressure, Ext Pressure, Vacuum as required.



reactor



BOTH SIDE DISHED END REACTOR :
Top and Bottom- Dish end Top and Bottom- Dish end
Agitator - Turbine type Agitator - Turbine type / Propeller Type. Anchor Type, with Bottom Tripod
With or with out Mechanical seal With or with out Mechanical seal
With Leg / lug support With Leg / lug support
1 No Man hole 1 No Man hole / Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
Thermo well Thermo well
Inlet, Drain for Bottom Inlet, Drain for Bottom
Jacket dish Jacket dish, Out let and vent at top of dish.
Designed for Internal Pressure Designed for Internal Pressure, Ext Pressure, Vacuum, As required.



BOTH SIDE DISHED END REACTOR

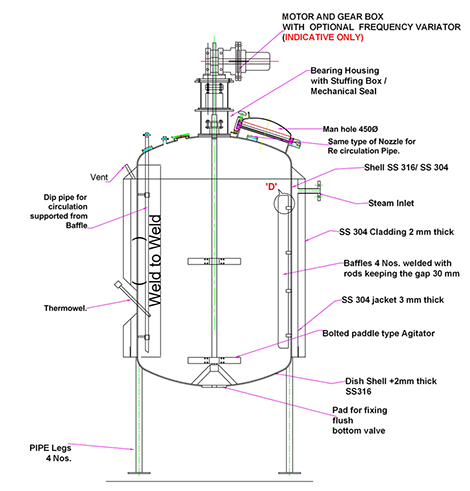

SHELL JACKETED DISHED REACTOR :
Top and Bottom- Dish end Top and Bottom- Dish end
Jacketed - Fr Shell and Bottom dis Jacketed - Fr Shell and Bottom dish
Insulated with Cladding Insulated with Cladding
Agitator - Turbine type Agitator - Turbine type / Propeller Type, Anchor Type, with Bottom Tripod
With or with out Mechanical seal With or with out Mechanical seal
With Leg / lug support With Leg / lug support
1 No Man hole 1 No Man hole / Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
Thermo well Thermo well
Inlet, Drain for Bottom Inlet, Drain for Bottom
Jacket dish Jacket dish, Out let and vent at top of dish.
Designed for Internal Pressure Designed for Internal Pressure, Ext Pressure, Vacuum As required.



SHELL JACKETED DISHED REACTOR

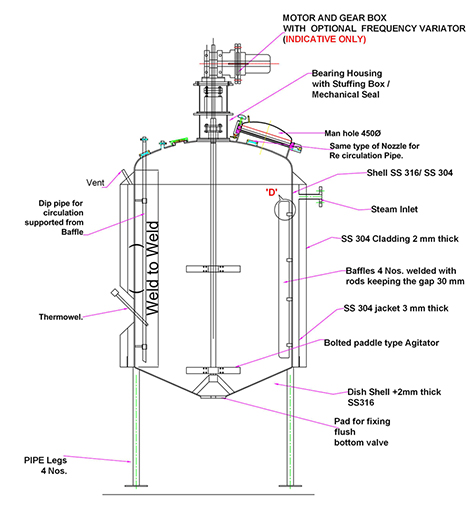

CONICAL BOTTOM TOP DISH REACTOR
Top and Bottom- Dish end Top and Bottom- Dish end
Jacketed - Fr Shell and Bottom food-processing-industries.html Jacketed - Fr Shell and Bottom dish
Insulated with Cladding Insulated with Cladding
Agitator - Turbine type Agitator - Turbine type / Propeller Type. Anchor Type, with Bottom Tripod
With or with out Mechanical seal With or with out Mechanical seal
With Leg With Leg / lug support
1 No Man hole 1 No Man hole / Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
Thermo well Thermo well
Inlet, Drain for Bottom Inlet, Drain for Bottom
esigned for Internal Pressure Designed for Internal Pressure, Ext Pressure, Vacuum, As required.



CONICAL BOTTOM TOP DISH REACTOR

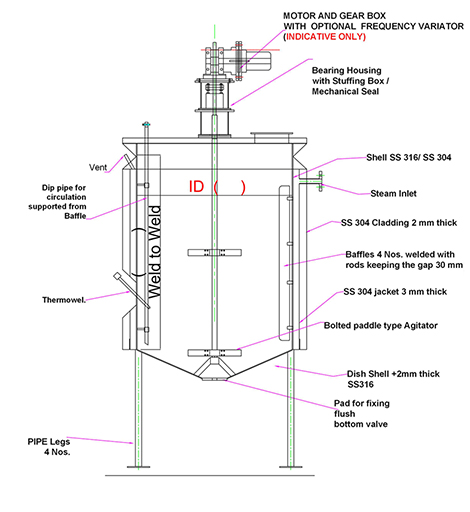

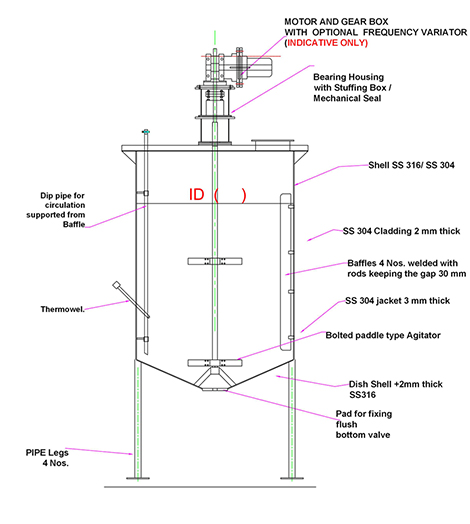

CONICAL BOTTOM FLAT TOP JACKETED REACTOR :
Top Flat and Bottom- Conical Top Flat and Bottom- Conical
Jacketed - Fr Shell and Bottom food-processing-industries.html Jacketed - Fr Shell and Bottom dish
Insulated with Cladding Insulated with Cladding
Agitator - Turbine type Agitator - Turbine type / Propeller Type, Anchor Type, with Bottom Tripod
With or with out Mechanical seal With or with out Mechanical seal
With Leg / lug support With Leg / lug support
1 No Man hole 1 No Man hole / Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
Thermo well Thermo well
Inlet, Drain for Bottom Inlet, Drain for Bottom
Jacket dish Jacket dish, Out let and vent at top of dish.
Designed for Internal Pressure Designed for Internal Pressure, Ext Pressure, Vacuum As required.



CONICAL BOTTOM FLAT TOP JACKETED REACTOR



CONICAL BOTTOM FLAT TOP REACTOR :
Top Flat and Bottom-Cone Top Flat and Bottom-Cone
Agitator - Turbine type Agitator - Turbine type / Propeller Type, Anchor Type, with Bottom Tripod
With or with out Mechanical seal With or with out Mechanical seal
With Leg / lug support With Leg / lug support
1 No Man hole 1 No Man hole / Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
Thermo well Thermo well
Inlet, Drain for Bottom Inlet, Drain for Bottom
Jacket dish Jacket dish, Out let and vent at top of dish.
Designed for Internal Pressure Designed for Internal Pressure, Ext Pressure, Vacuum, As required.



CONICAL BOTTOM FLAT TOP REACTOR

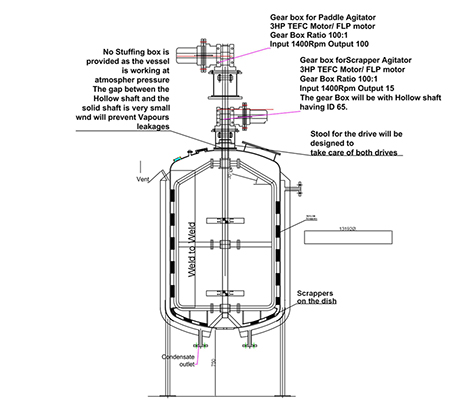

SCRAPPER REACTOR
Top and Bottom- Dish end Top and Bottom- Dish end
Jacketed - Fr Shell and Bottom dish Jacketed - Fr Shell and Bottom dish
Insulated with Cladding Insulated with Cladding
gitator - Propeller Type with Internal scrapper Agitator - Propeller Type with Internal scrapper to continuous cleaning the shell.
    with Bottom Tripod
ith or with out Mechanical seal With or with out Mechanical seal
With Leg / lug support With Leg / lug support
1 No Man hole 1 No Man hole / Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
Thermo well Thermo well
Inlet, Drain for Bottom Inlet, Drain for Bottom
Jacket dish Jacket dish, Out let and vent at top of dish.
Designed for Internal Pressure Designed for Internal Pressure, Ext Pressure, Vacuum, As required.



SCRAPPER REACTOR
